接下來將介紹遊戲中不可或缺的要素,那就是音樂或是音效等聲音,一個遊戲如果沒有了聲音,姑且不論它是否好玩有趣,想必也沒什麼好玩的了,因為聲音可以用來幫助我們融入這個遊戲的情境,適時的使用聲音可以使玩家更快的融入遊戲當中,所以就必須了解一下XNA在聲音上是如何處理的。
之前介紹了一下XNA在音效處理上是使用了XACT這個工具來處理聲音,下面就會真正來介紹如何來實現它和它操作的流程。
設定XACT專案:
開啟XACT之後,必須先將專案存在指定的地方,之後才可以開始設定專案裡的東西。
之後在右方Wave Banks上按右鍵選取New Wave Bank。

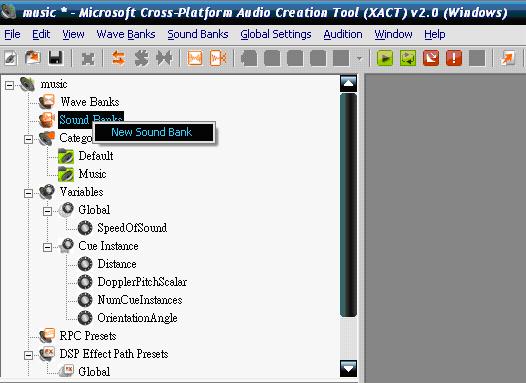

然後在右方Sound Banks上按右鍵選取New Sound Bank。
之後在Wave Bank的視窗上按右鍵選取Insert Wave File之後去選你要放在遊戲中的音樂或音效。

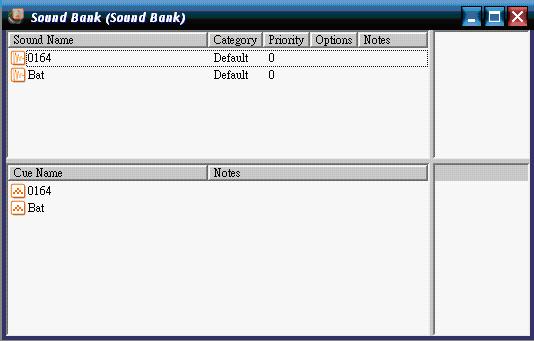

再來就是將Wave Bank視窗中所有的聲音檔用拖移的方式拉到Sound Bank的視窗中,CueName有顯示出檔名才代表成功。
之後就調整一下聲音檔的一些控制,像是循環播放幾次或是聲音大小等設定,需要注意的是Loop Count=0,是代表不重複播放,故聲音只會發生一次,而我們在遊戲中所使用的音效就是需要設定為0,而背景音樂則必須勾選intinite,代表無限撥放,調整完之後必須存檔,設定在程式中才能夠有效。
播放音效程式流程:
將XACT專案設定完畢之後就可以開始在我們的程式上使用,開啟程式後必須先將專案放入Content裡面以便程式讀取,這裡不需要將音樂檔也加入到專案中,但是音樂檔還是必須要放在該專案的Content目錄裡面,以供XACT專案檔能夠搜尋的到。
然後在程式一開始必須先宣告會使用到的變數AudioEngine、WaveBank、SoundBank。
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
AudioEngine最主要就是要來讀取XACT(.xgs)的專案,WaveBank是聲音檔(.WAV)的集合,也就是加入到專案到WAV檔案,而SoundBank是cue的集合,在使用前先在Initialize在函數中宣告它們所讀取到檔案的位置,
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
在AudioEngine函數裡面需要填入你想要讀取的XACT專案的名稱,副檔名是xgs,WaveBank函數裡面則是填入你在聲音專案中WaveBanks所取的名稱,副檔名是xwb,SoundBank函數裡面則是填入你在聲音專案中SoundBanks所取的名稱,副檔名是xsb,這裡需要注意的是路徑位置,路徑位置是輸入編譯後的檔案位置,預設的情況下都會在編譯完的檔案都會放在該專案資料夾/bin/x86/debug/Content底下,因此我們在輸入路徑時就必須在加上「Content\\」,表示在這個資料夾底下。
在來就是真正的播放聲音了,剛剛說SoundBank是Cue的集合,所以就是需要用到它裡面的成員函數PlayCue,裡面要填入的就是WAV的檔名,但不需要
輸入副檔名.wav。
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
播放音效程式範例:
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedBlockStart.gif)
02
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
03
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
04
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
05
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
06
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
07
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
08
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
09
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
10
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
11
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
12
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedBlockEnd.gif)
13
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
14
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/None.gif)
15
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedBlockStart.gif)
16
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
17
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
18
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
19
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
20
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
21
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
22
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
23
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
24
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
25
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
26
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
27 public Game1()
28
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
29
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
GraphicsDeviceManager(this);
30
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
31
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
32
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
33 protected override void Initialize()
34
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
35
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
36
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
37
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
38
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
39
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
40
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
41 protected override void LoadContent()
42
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
43
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
44
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
45
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
46 protected override void UnloadContent()
47
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
48
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
49
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
50 protected override void Update(GameTime gameTime)
51
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
52
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
53
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
54
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
55
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
56
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
57
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
58
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
59
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
60
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
61
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
62
![](http://www.dotblogs.
com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
63
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
64
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
65
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
66
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
67
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
68
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
69
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
70
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
71 protected override void Draw(GameTime gameTime)
72
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockStart.gif)
73
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
74
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/InBlock.gif)
75
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
76
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedSubBlockEnd.gif)
77
![](http://www.dotblogs.com.tw/Providers/BlogEntryEditor/FCKeditor/editor/dialog/InsertCode/codeimages/ExpandedBlockEnd.gif)
78
此範例還加入了鍵盤按鍵的控制,按鍵A和S有個別的聲音,在被按下的時候才會發出聲音。
最後附上播放音效專案檔:test-voice.rar
